Grounding Systems Analysis
TRAGSYS is a SaaS product designed for analysis of low and high frequency, as well as the transient behavior of grounding structures. It uses a rigorous mathematical formulations derived from the complete set of Maxwell’s equations, numerically solved by the method of moments.
Trusted by
From Design to Precise Results
TRAGSYS features complete UI design environment which is closely integrated with the calculation engine, providing the full flexibility of graphical design, 2D and 3D results display and various text output formats for maximal precision.

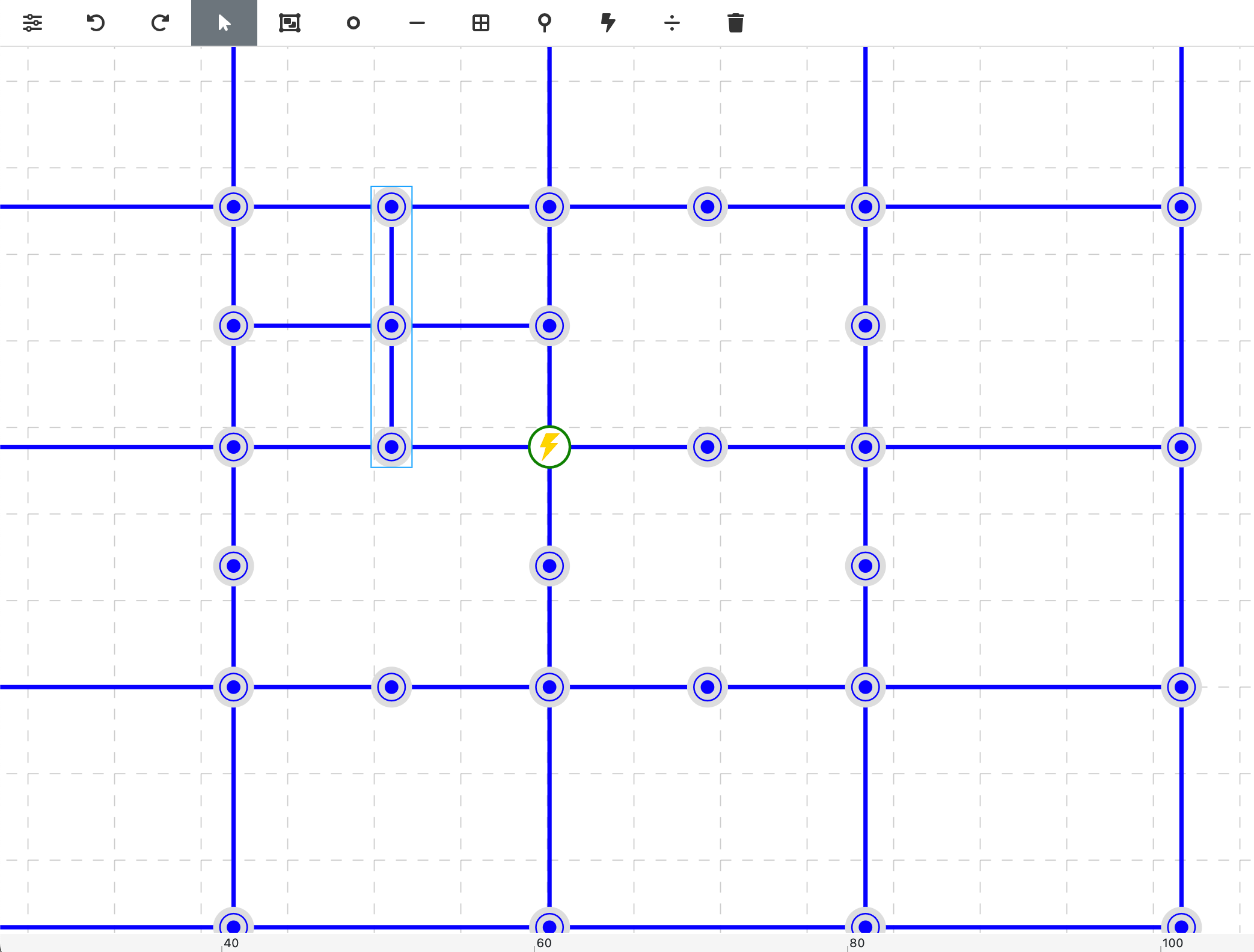

Design Surface
Beautiful and rich design environment built for grounding systems.
Calculation Engine
Rigorous mathematical formulations derived from the complete set of Maxwell’s equations.
Rich Visualizations
2D and 3D results display and various text output formats for maximal precision.
Interact
Flexible. TRAGSYS alows full interaction with the grounding system, enabling the user to use trial and measure techniques with ease and flexibility.
Efficient. Heavily optimised and tuned calculation engine allows you to get results very quickly, enabling easy experimentation.
Output Results
Plots and Perspectives. Output results are given as 2D plots and/or 3D perspectives. These results can be exported in EPS (Encapsulated PostScript) file format, as an ASCII text data or downloaded as an image.
Interactivity and Animation. Animation is enabled for both the 2D plots and the 3D perspectives, on results in frequency and time domains.
Electrical safety for the future
Build your new grounding system the easy way.
Optimize the material and build time of your grounding system without breaking project deadlines.
Request a demo
